Model NO.

W1-SP WIFI Solar PTZ Dome Camera

Camera

Image Sensor

1/2.8"color CMOS Sensor

Resolution

3MP

Effective Pixels

2304(H)*1296(V)

Compression

H.264/H.265

Electronic Shutter Time

Auto（1/1.5s~1/30000s）

Minimun Illumination

0.01 Lux

S/N Ratio

46dB

Scanning System

Progressive

Video Output

Wireless network

Reset Button

Yes

PTZ

Horizontal Rotation Range

0~355°

Tilt Rotation Range

0~90°

Guard Points

N/A

LENS Type

Focus Length

3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

3M Pixels

Night Vision

Infrared LED

14μ x 3PCS + 14μ x 3PCS White light

Infrared Distance

10M

IR Status

AGC auto control

IR Power On

Auto Control

Network

Ethernet

N/A

Protocol

TCP/IP、UDP/IP、DHCP、MQTT、P2P

ONVIF

N/A

P2P

Support

4G

N/A

POE

N/A

Main Stream 1

2304*1296@15fps

Main Stream 2

N/A

Main Stream 3

N/A

Sub Stream 1

1280*720@15fps

Sub Stream 2

N/A

Sub Stream 3

N/A

Tri Stream

N/A

IE Brower

N/A

Smart Phone

support

Wireless

Antena

3dbi

Hotspot

N/A

Wi-Fi

Wi-Fi(IEEE802.11b/g/n)

WIFI Range

No obstacles 100m Max.

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

YES

Corridor Pattern

N/A

ROI

N/A

Defog  Mode

N/A

BLC

Support

HDR

N/A

3DNR

Support

DWDR

WDR

Motion Detection

Support

Privacy  Masking

N/A

Recording Mode

SDcard

Language

Simplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish

Function

Audio

2-Way Audio

Alarm

Motion Detection、PIR human body infrared detection

SD Card Slot

Support Max 128G

General

Housing

plastic,IP65

Bracket

Support

IR Cut Filter

YES

Power

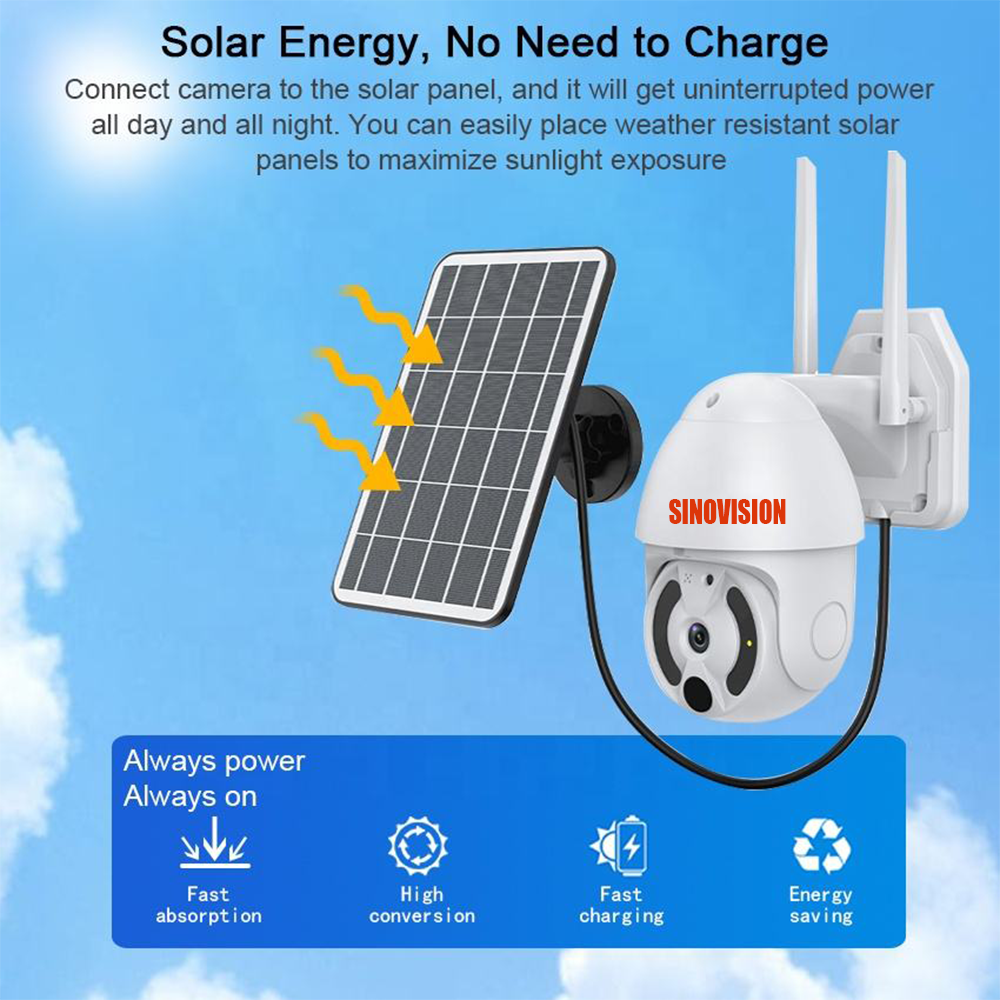

8W solar panel Battery(12000mAh)

Operation Temperature

-10° ~ 45°C  /10% ~ 80%  (no condensation)

Storage Temperature

-20°C ~ 60°  /0% ~ 90% (no condensation)
