Sinovision S3 Tuya Solar Outdoor Camera
|
|
SN-S3-SP
Main Feature
- Wireless Battery Powered Smart Camera
- Low power consumption, 6 months' endurance
- Accurate motion detection by PIR Sensor,8m PIR Distance
- Day/Night, 2-way audio
- Immediate notification push to APP(Within 1sec)
- Power: 2pcs¡Á18650 battery
- Support SD Card Storage, max 128GB

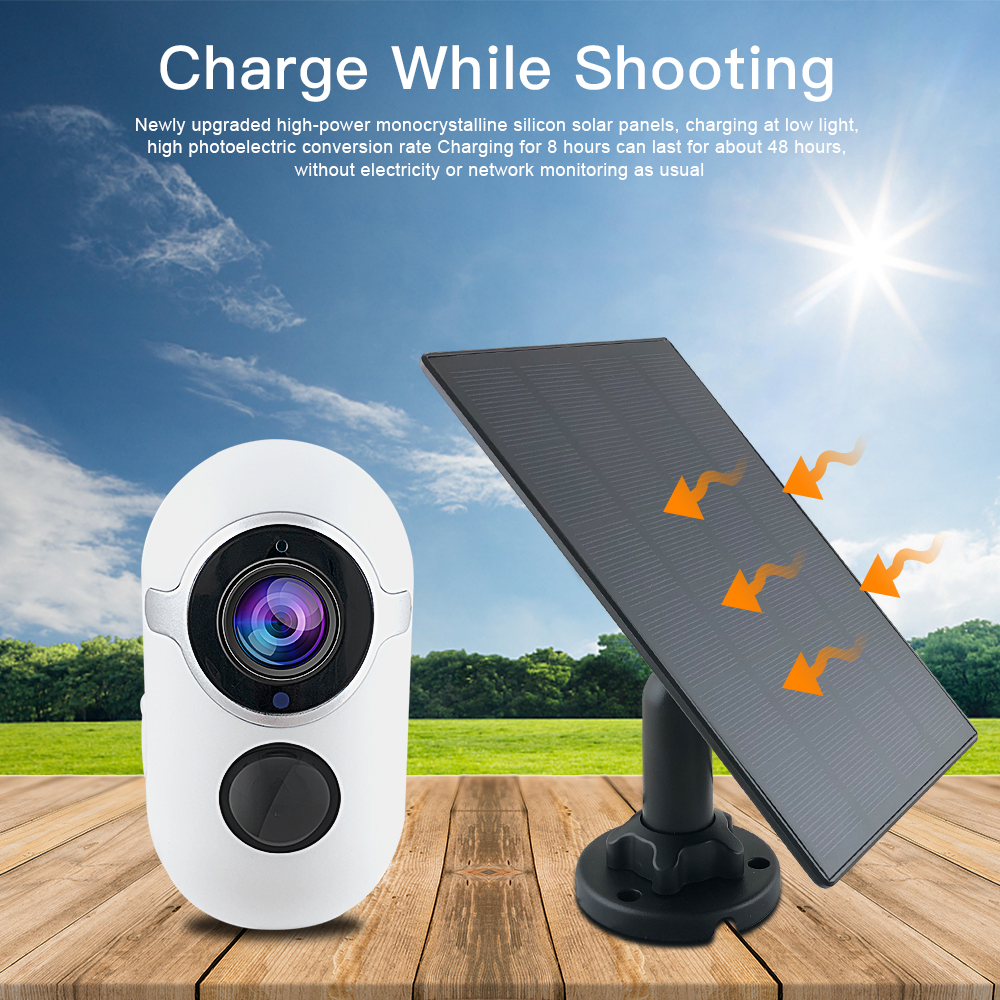

- 3.3W Solar Panel Optional
Maximum power (wp): 3.3 w
The biggest power supply voltage (v): 5.5 v
Maximum power current (A): 0.6 A
The open circuit voltage (v): 6.6 v
Short circuit current (A) :0.66 A
Module size (mm) :155 * 180 * 14 * 16 mm
Test temperature: 25 ¡ã c, AM1.5, 1000 w / ©O
The biggest system voltage: 1000 v
MOQ: 100-500 units | Lead Time: 20-30 days for Volume Order (5-7 Days for Sample Order)
OEM/ODM: Custom logo, packaging, mold, firmware | Warranty: 1-2 years
Certifications: FCC, CE, RoHS, KC, NBTC, ISO9001
|
Reply within 24 hours
Factory direct pricing
|
Product Specifications
|
Model NO.
|
S3 Solar Powered Outdoor Bullet Camera
|
|
Camera
|
|
Image Sensor
|
1/2.8"color CMOS sensor
|
|
Resolution
|
3MP
|
|
Effective Pixels
|
2304(H)*1296(V)
|
|
Compression
|
H.264/H.265
|
|
Electronic Shutter Time
|
Auto£¨1/1.5s~1/30000s£©
|
|
Minimun Illumination
|
0.01Lux
|
|
S/N Ratio
|
46dB
|
|
Scanning System
|
Progressive
|
|
Video Output
|
Wireless network
|
|
Reset Button
|
Yes
|
|
PTZ
|
|
Horizontal Rotation Range
|
N/A
|
|
Tilt Rotation Range
|
N/A
|
|
Guard Points
|
N/A
|
|
LENS Type
|
|
Focus Length
|
3.6mm F2.0
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
2M Pixels
|
|
Night Vision
|
|
Infrared LED
|
8PCS
|
|
Infrared Distance
|
15M
|
|
IR Status
|
AGC auto control
|
|
IR Power On
|
Auto Control
|
|
Network
|
|
Ethernet
|
N/A
|
|
Protocol
|
TCP/IP¡¢UDP/IP¡¢DHCP¡¢MQTT¡¢P2P
|
|
ONVIF
|
N/A
|
|
P2P
|
Support
|
|
4G
|
N/A
|
|
POE
|
N/A
|
|
Main Stream 1
|
2304(H)*1296(V)@15fps
|
|
Main Stream 2
|
N/A
|
|
Main Stream 3
|
N/A
|
|
Sub Stream 1
|
1280*720@15fps
|
|
Sub Stream 2
|
N/A
|
|
Sub Stream 3
|
N/A
|
|
Tri Stream
|
N/A
|
|
IE Brower
|
N/A
|
|
Smart Phone
|
support
|
|
Wireless
|
|
Antena
|
3dbi
|
|
Hotspot
|
N/A
|
|
Wi-Fi
|
Wi-Fi(IEEE802.11b/g/n)
|
|
WIFI Range
|
No obstacles 100m Max.
|
|
Camera Features
|
|
Day/Night
|
B&W (IR-CUT )
|
|
Image Config
|
YES
|
|
Corridor Pattern
|
N/A
|
|
ROI
|
N/A
|
|
Defog Mode
|
N/A
|
|
BLC
|
Support
|
|
HDR
|
N/A
|
|
3DNR
|
Support
|
|
DWDR
|
WDR
|
|
Motion Detection
|
Support
|
|
Privacy Masking
|
N/A
|
|
Recording Mode
|
TF Card/ Cloud Storage Optional
|
|
Language
|
Simplified Chinese, English, Japanese,
German, Russian, French, Italian, Spanish
|
|
Function
|
|
Audio
|
2-Way Audio
|
|
Alarm
|
Motion Detection¡¢PIR human body infrared detection
|
|
SD Card Slot
|
Support Max 128G
|
|
General
|
|
Housing
|
Plastic,IP65
|
|
Bracket
|
Support
|
|
IR Cut Filter
|
YES
|
|
Power
|
5200mAH Rechargeable Battery or 3.3W
solar panel Optional
|
|
Operation Temperature
|
-10¡ã ~ 45¡ãC /10% ~ 80% (no
condensation)
|
|
Storage Temperature
|
-20¡ãC ~ 60¡ã /0% ~ 90% (no
condensation)
|
|
